钛、钒熔盐电解提取及纯化研究进展

任艺雯; 毛佩竹; 吕学明; 樊涌; 王子建; 李少龙; 吕泽鹏; 何季麟; 宋建勋

doi:10.7513/j.issn.1004-7638.2025.02.001

钛、钒熔盐电解提取及纯化研究进展

doi: 10.7513/j.issn.1004-7638.2025.02.001

任艺雯^{1, 2,},
毛佩竹^{1, 2},
吕学明³,
樊涌⁴,
王子建^{1, 2},
李少龙^{1, 2},
吕泽鹏^{1, 2},
何季麟^{1, 2},
宋建勋^{1, 2, ,}

1.
郑州大学中原关键金属实验室, 河南郑州 450000
2.
郑州大学材料科学与工程学院, 河南郑州 450000
3.
攀钢集团攀枝花钢铁研究院有限公司, 四川攀枝花617000
4.
武汉科技大学资源与环境工程学院, 湖北武汉 430000

基金项目: 中原关键金属实验室项目（GJJSGFJQ202302、GJJSGFYQ202425）；国家重点研发计划青年科学家项目（2021YFC2901600）；中央在川高校院所重大科技成果转化项目（2022ZHCG0123）。

详细信息

作者简介:
任艺雯，1998年出生，女，河南安阳人，硕士研究生，研究方向：电化学冶金，E-mail：renyiwen799@163.com

通讯作者:
宋建勋，1984年出生，男，河南商丘人，教授，研究方向：关键金属的提取与提纯，固废资源化，电化学冶金，E-mail：jianxun.song@zzu.edu.cn

中图分类号: TF823,TF841
计量
- 文章访问数: 66
- HTML全文浏览量: 20
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-20
- 刊出日期: 2025-05-06

Research progress on electrolytic extraction and purification of titanium and vanadium molten salts

REN Yiwen^{1, 2
,},
MAO Peizhu^{1, 2},
LÜ Xueming³,
FAN Yong⁴,
WANG Zijian^{1, 2},
LI Shaolong^{1, 2},
LÜ Zepeng^{1, 2},
HE Jilin^{1, 2},
SONG Jianxun^{1, 2
, ,}

1.
Zhongyuan Critical Metals Laboratory, Zhengzhou University, Zhengzhou 450000, Henan, China
2.
School of Materials Science and Engineering, Zhengzhou University, Zhengzhou 450000, Henan, China
3.
Panzhihua Iron and Steel Research Institute Co., Ltd., Panzhihua 617000, Sichuan, China
4.
College of Resource and Environmental Engineering, Wuhan University of Science and Technology, Wuhan 430000, Hubei, China

摘要

摘要: 钛和钒作为重要的战略性金属，其传统火法或湿法提取和纯化工艺存在效率低、能耗大、成本高等共性问题。熔盐电解技术以其工艺流程短、产品纯度高、绿色环保等优势，为钛、钒的提取与纯化提供了新思路。文中对熔盐电解提取和纯化钛与钒的最新研究进展进行了综述，分析了卤化物熔盐电解、FFC法、USTB法的优缺点与应用潜力，讨论了熔盐体系中钛和钒的电化学行为及工艺参数优化策略。未来，在设备材料耐腐蚀性、电流效率提升及工业化规模化应用方面，钛和钒的熔盐电解技术仍需进一步探索。
- 熔盐电解 /
- 钛 /
- 钒 /
- 提取 /
- 纯化
Abstract: As important strategic metals, titanium and vanadium have some common problems such as low efficiency, high energy consumption and high cost in traditional fire or wet extraction and purification processes. Molten salt electrolysis technology provides a new idea for the extraction and purification of titanium and vanadium with its advantages of short process, high product purity and green environmental protection. In this paper, the latest research progress in the extraction and purification of titanium and vanadium by molten salt electrolysis was reviewed. The advantages and disadvantages and application potential of halides molten salts electrolysis, FFC method and USTB method were analyzed. The electrochemical behavior of titanium and vanadium in molten salt systems and the optimization strategy of process parameters were discussed. In the future, in terms of corrosion resistance of equipment materials, current efficiency improvement, and industrial scale application, the molten salt electrolysis technology of titanium and vanadium still needs to be further explored.
- molten salt electrolysis /
- titanium /
- vanadium /
- extraction /
- purification

HTML全文

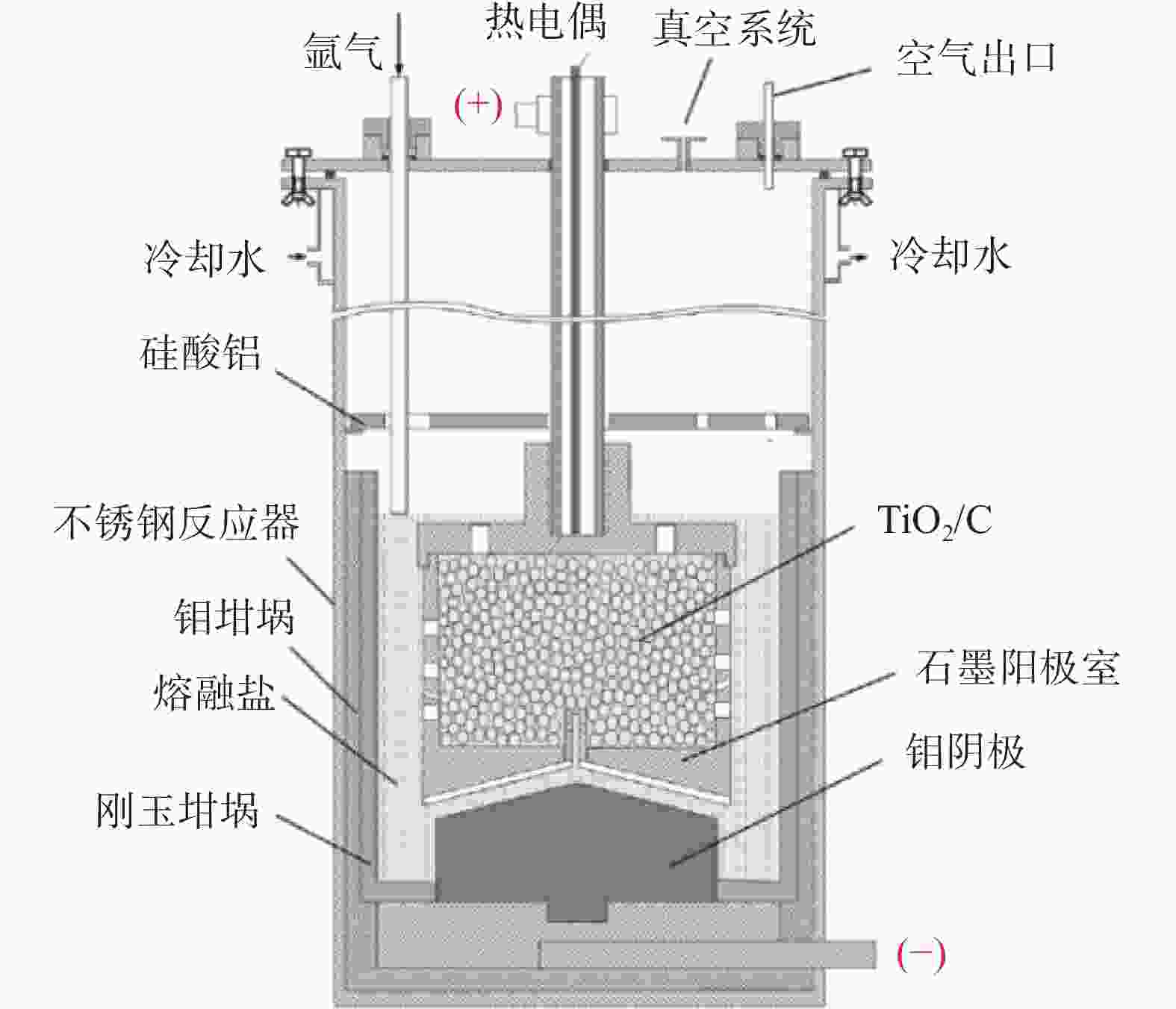

图 1 氯化电解提取钛示意^[14]

Figure 1. Schematic illustration of chlorination followed by electrolytic extraction of titanium^[14]

下载: 全尺寸图片幻灯片

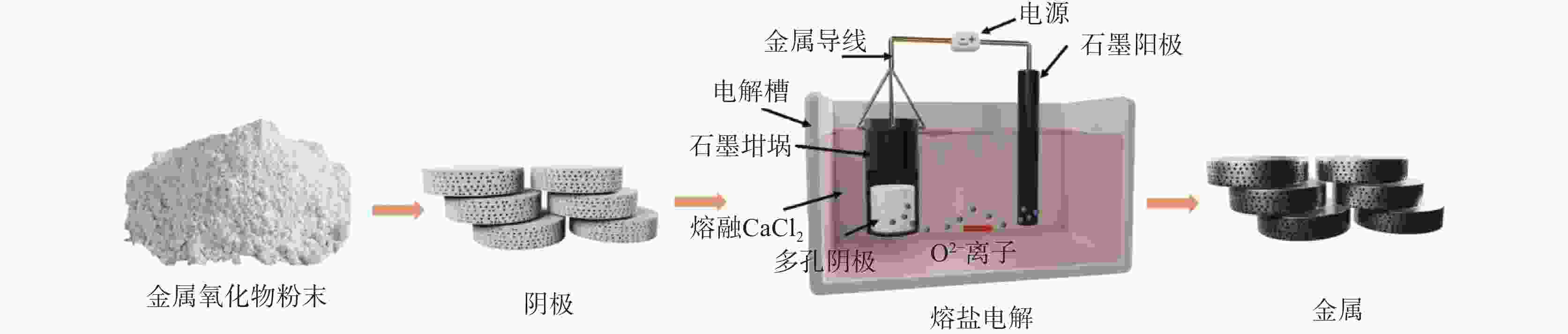

图 2 FFC法工艺流程示意

Figure 2. Schematic diagram of the FFC method

下载: 全尺寸图片幻灯片

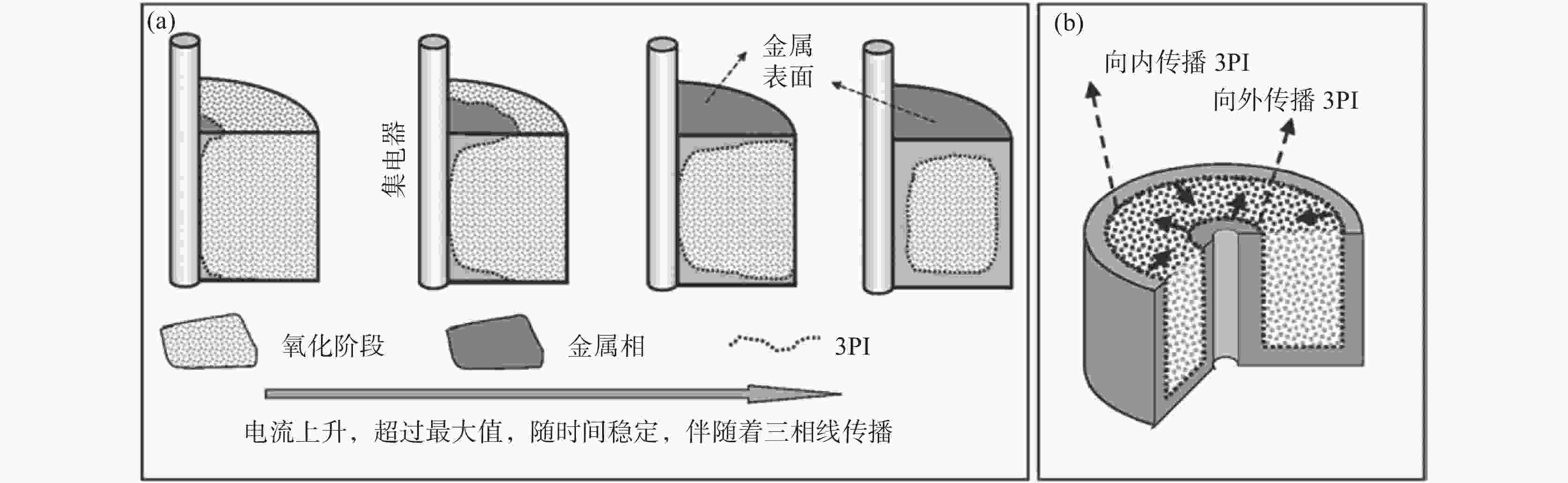

图 3 圆柱形氧化物球团表面金属化的3PI传播机制示意^[26]

(a)从导线沿中心表面，引出最大电流；(b)在球团内部传播的3PI导致当前的平台

Figure 3. Schematic illustration of the 3PI propagation mechanism for the surface metallization of a cylindrical oxide pellet^[26]

下载: 全尺寸图片幻灯片

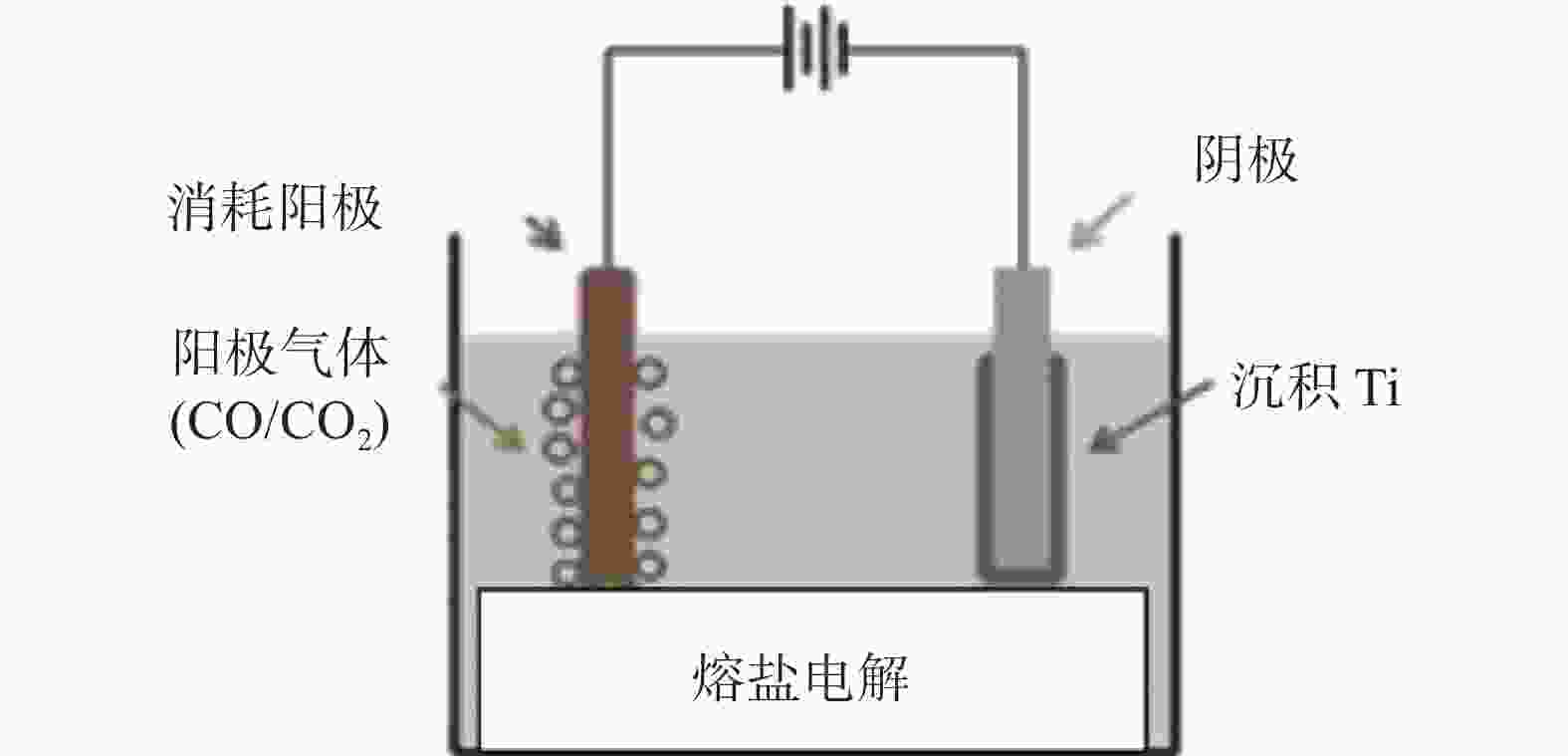

图 4 可溶阳极熔盐电解工艺（USTB法）示意^[40]

Figure 4. Schematic diagram of electrolysis process with consumable anode for titanium production, the USTB process^[40]

下载: 全尺寸图片幻灯片

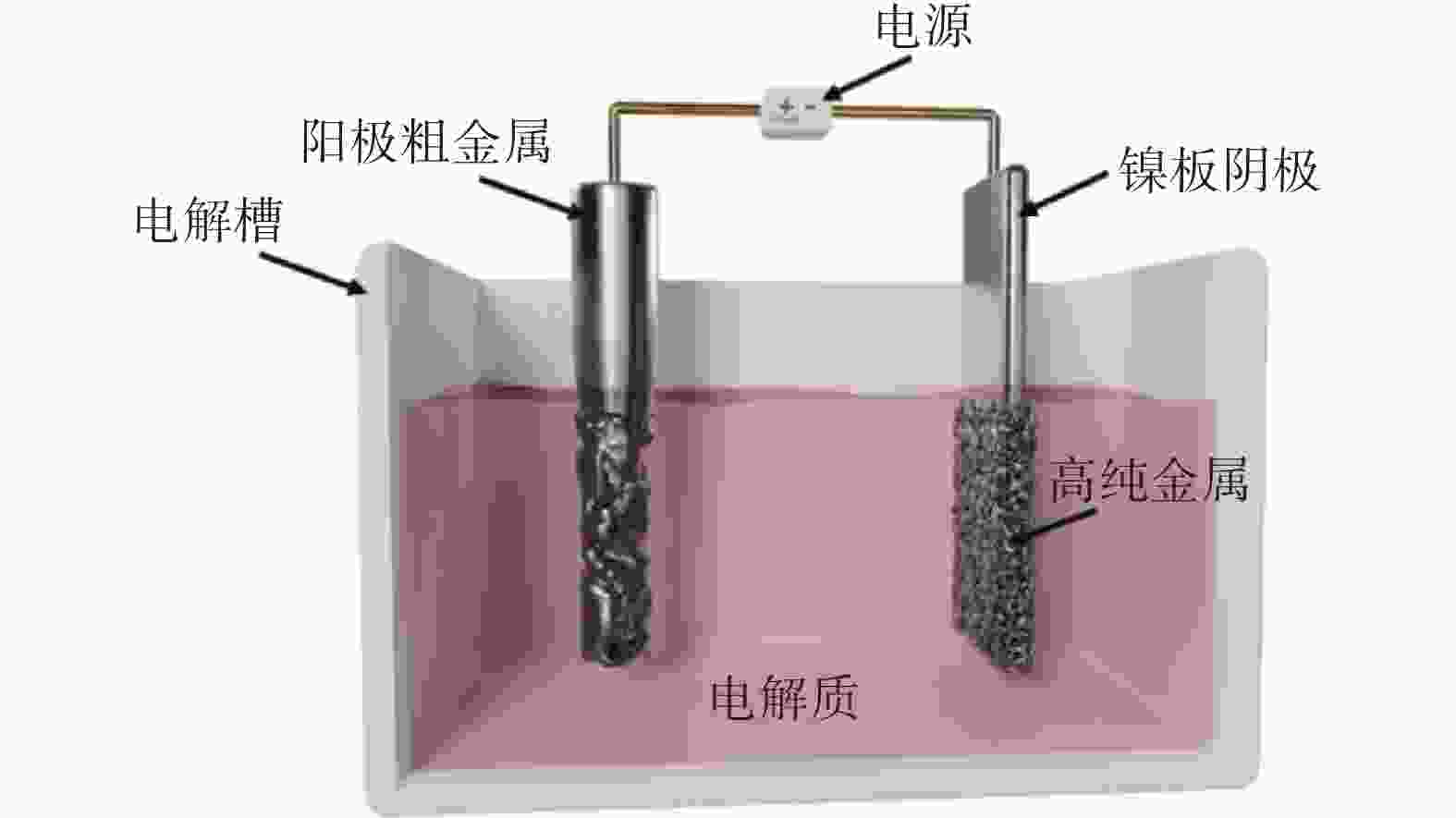

图 5 钛、钒提纯示意

Figure 5. Schematic diagram of titanium and vanadium purification

下载: 全尺寸图片幻灯片

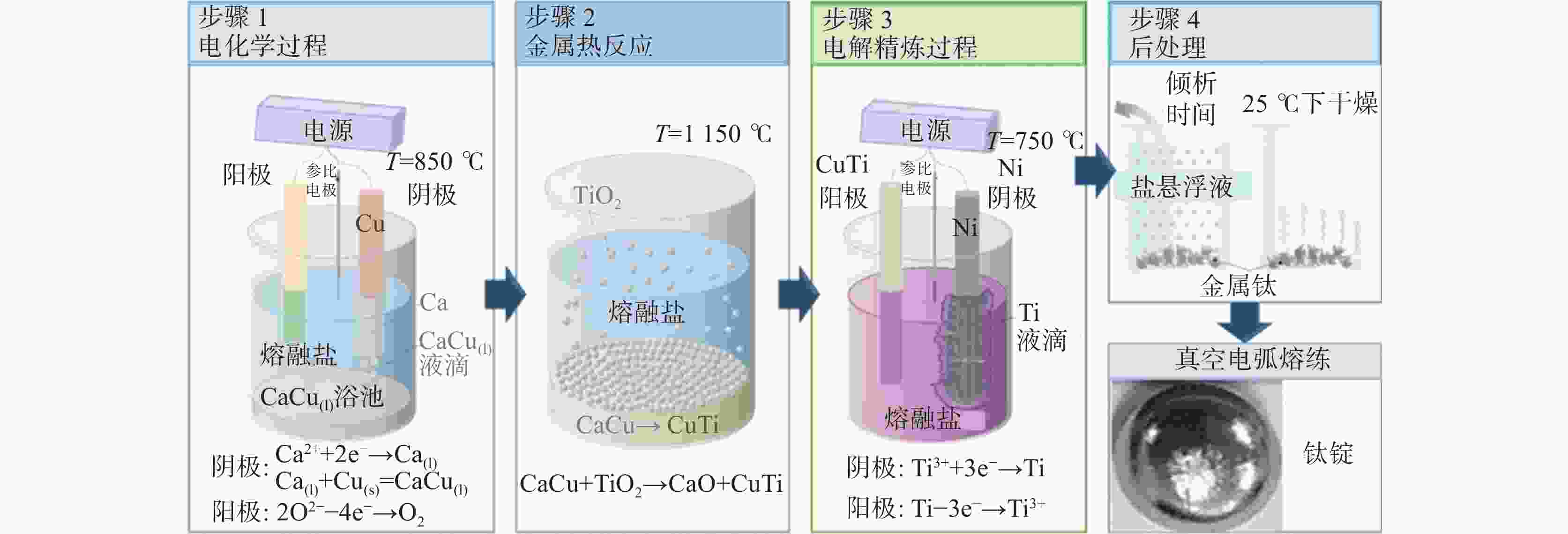

图 6 CuTi合金合成和电精炼的无碳钛生产方法^[50]

Figure 6. Carbon-free titanium production method for synthesis and electrorefining of CuTi alloy^[50]

下载: 全尺寸图片幻灯片

表 1 传统熔盐电解法、FFC、USTB法提取金属钛、钒的纯度及生产规模统计

Table 1. The purity of titanium and vanadium extracted by traditional molten salt electrolysis method, FFC and USTB method and the expanded scale statistics

方法	金属	纯度/%	生产规模
卤化物、含氧酸盐电解提取	钛	99.5～99.8^[11]	半工业化生产
卤化物、含氧酸盐电解提取	钒	96.8～99.8^[55]	半工业化生产
FFC	钛	＞99.9^[7]	中试规模
FFC	钒	99.5～99.8^[35]	中试规模
USTB	钛	＞99.9%^{[40, 56]}	中试规模
USTB	钒	≥99.1^[42]	实验室级
合金电精炼	钛	99.44^[57]	实验室级
合金电精炼	钒	99.99^[53]	实验室级

下载: 导出CSV

参考文献(54)

[1]	LIU S Y, WANG L J, CHEN J, et al. Research progress of vanadium extraction processes from vanadium slag: A review[J]. Separation and Purification Technology, 2024,342:127035. doi: 10.1016/j.seppur.2024.127035
[2]	HAYES F H, BOMBERGER H B, FROES F H, et al. Advances in titanium extraction metallurgy[J]. Jom, 1984,36(6):70-76. doi: 10.1007/BF03338480
[3]	TAKEDA O, OUCHI T, OKABE T H. Recent progress in titanium extraction and recycling[J]. Metallurgical and Materials Transactions B, 2020,51:1315-1328. doi: 10.1007/s11663-020-01898-6
[4]	WANG Z G, ZHENG S L, WANG S N, et al. Electrochemical decomposition of vanadium slag in concentrated NaOH solution[J]. Hydrometallurgy, 2015,151:51-55. doi: 10.1016/j.hydromet.2014.10.017
[5]	QIN Z F, ZHANG G Q, LUO D M, et al. Separation of titanium from vanadium and iron in leach solutions of vanadium slag by solvent extraction with trioctyl tertiary amine (N235)[J]. Hydrometallurgy, 2019,188:216-221. doi: 10.1016/j.hydromet.2019.07.004
[6]	ZHANG Y, FANG Z G, XIA Y, et al. A novel chemical pathway for energy efficient production of Ti metal from upgraded titanium slag[J]. Chemical Engineering Journal, 2016,286:517-527. doi: 10.1016/j.cej.2015.10.090
[7]	CHEN G Z, FRAY D J, FARTHING T W. Direct electrochemical reduction of titanium dioxide to titanium in molten calcium chloride[J]. Nature, 2000,407(6802):361-364. doi: 10.1038/35030069
[8]	JIAO S Q, ZHU H M. Electrolysis of Ti₂CO solid solution prepared by TiC and TiO₂[J]. Journal of Alloys and Compounds, 2007,438(1):243-246.
[9]	ZHU H M, JIAO S Q, GU X F. Method for producing pure titanium by anode electrolysis of titanium monoxide/titanium carbide soluble solid solution: CN1712571[P]. 2005-12-28. (朱鸿民, 焦树强, 顾学范. 一氧化钛/碳化钛可溶性固溶体阳极电解生产纯钛的方法: 中国, 1712571[P]. 2005-12-28. ZHU H M, JIAO S Q, GU X F. Method for producing pure titanium by anode electrolysis of titanium monoxide/titanium carbide soluble solid solution: CN1712571[P]. 2005-12-28.
[10]	SONG J X. Electrochemical behavior of titanium ions in alkali chloride molten salts[D]. Beijing: University of Science and Technology Beijing, 2015. (宋建勋. 碱金属氯化物熔盐中钛离子电化学行为研究[D]. 北京: 北京科技大学, 2015. SONG J X. Electrochemical behavior of titanium ions in alkali chloride molten salts[D]. Beijing: University of Science and Technology Beijing, 2015.
[11]	ZHU H M, JIAO S Q, NING X H. New metallurgical technology of titanium[J]. Materials Progress in China, 2011,30(6):37-43. (朱鸿民, 焦树强, 宁晓辉. 钛金属新型冶金技术[J]. 中国材料进展, 2011,30(6):37-43. ZHU H M, JIAO S Q, NING X H. New metallurgical technology of titanium[J]. Materials Progress in China, 2011, 30（6）: 37-43.
[12]	GINATTA M V, ORSELLO G, BERRUTI R. Method and cell for the electrolytic production of a polyvalent metal: US07/340356[P]. 1991-05-14.
[13]	GINATTA M V. Economics and production of primary titanium by electrolytic winning; proceedings of the EPD Congress, F, 2001[C].
[14]	ZHAO K, WANG Y W, GAO F. Electrochemical extraction of titanium from carbon-doped titanium dioxide precursors by electrolysis in chloride molten salt[J]. Ionics, 2019,25(12):6107-6114. doi: 10.1007/s11581-019-03149-4
[15]	JIAO H D. Electrode processes of titanium ions on liquid metal cathodes[D]. Beijing: University of Science and Technology Beijing, 2019. (焦汉东. 钛离子在液态金属阴极上的电极过程[D]. 北京: 北京科技大学, 2019. JIAO H D. Electrode processes of titanium ions on liquid metal cathodes[D]. Beijing: University of Science and Technology Beijing, 2019.
[16]	LIU Y X, YAN H W, LIU Z W, et al. Feasibility study on direct electrolysis of titanium in NaF-K₂TiF₆-TiO₂ system[J]. Journal of Kunming University of Science and Technology (Natural Science Edition), 2021,46(5):9-15. (刘瑛鑫, 颜恒维, 刘战伟, 等. NaF-K₂TiF₆-TiO₂体系中直接电解制备钛的可行性研究[J]. 昆明理工大学学报(自然科学版), 2021,46(5):9-15. LIU Y X, YAN H W, LIU Z W, et al. Feasibility study on direct electrolysis of titanium in NaF-K₂TiF₆-TiO₂ system[J]. Journal of Kunming University of Science and Technology (Natural Science Edition), 2021, 46（5）: 9-15.
[17]	YANG Y H, YAN H W, YANG G. Study on preparation of titanium metal by electrolysis of molten salt in fluoride system[J]. Light Metal, 2023(2):40-45. (杨永辉, 颜恒维, 杨光. 氟化物体系中熔盐电解制备金属钛的研究[J]. 轻金属, 2023(2):40-45. YANG Y H, YAN H W, YANG G. Study on preparation of titanium metal by electrolysis of molten salt in fluoride system[J]. Light Metal, 2023（2）: 40-45.
[18]	WENG W, WANG M Y, GONG X Z, et al. One-step electrochemical preparation of metallic vanadium from sodium metavanadate in molten chlorides[J]. International Journal of Refractory Metals and Hard Materials, 2016,55:47-53. doi: 10.1016/j.ijrmhm.2015.11.007
[19]	XU Y, JIAO H D, WANG M Y, et al. Direct preparation of V-Al alloy by molten salt electrolysis of soluble NaVO₃ on a liquid Al cathode[J]. Journal of Alloys and Compounds, 2019,779:22-29. doi: 10.1016/j.jallcom.2018.11.232
[20]	GUSSONE J, VIJAY C R Y, HAUBRICH J, et al. Effect of vanadium ion valence state on the deposition behaviour in molten salt electrolysis[J]. Journal of Applied Electrochemistry, 2018,48(4):427-434. doi: 10.1007/s10800-018-1165-7
[21]	LIU S Y, WANG L J, CHOU K C, et al. Electrolytic preparation and characterization of VCr alloys in molten salt from vanadium slag[J]. Journal of Alloys and Compounds, 2019,803:875-881. doi: 10.1016/j.jallcom.2019.06.366
[22]	BECKER R, SAWODNY W. Vibrational spectra and force constants of potassium-hexafluoro-vanadates[J]. Zeitschrift für Naturforschung B, 1973(28):360-362.
[23]	WENG W, JIANG B M, WANG Z, et al. In situ electrochemical conversion of CO₂ in molten salts to advanced energy materials with reduced carbon emissions[J]. Science Advances, 2020,6(9):eaay9278. doi: 10.1126/sciadv.aay9278
[24]	FRAY D J, CHEN G Z Reduction of titanium and other metal oxides using electrodeoxidation[J]. Materials Science and Technology, 2004, 20(3): 295-300.
[25]	XIAO W, JIN X B, DENG Y, et al. Three-phase interlines electrochemically driven into insulator compounds: A penetration model and its verification by electroreduction of solid AgCl[J]. Chemistry–A European Journal, 2007,13(2):604-612. doi: 10.1002/chem.200600172
[26]	CHEN G Z, GORDO E, FRAY D J. Direct electrolytic preparation of chromium powder[J]. Metallurgical and Materials Transactions B, 2004,35(2):223-233. doi: 10.1007/s11663-004-0024-6
[27]	BHAGAT R, JACKSON M, INMAN D, et al. Production of Ti–W alloys from mixed oxide precursors via the FFC cambridge process[J]. Journal of The Electrochemical Society, 2009,156(1):E1. doi: 10.1149/1.2999340
[28]	MENG X H, ZHAO H M, BI S, et al. Electrochemical mechanism of molten salt electrolysis from TiO₂ to titanium[J]. Materials, 2022, 15(11).
[29]	YANG F, LIU Y, YE J W, et al. Preparation of titanium through the electrochemical reducing Ti₄O₇ in molten calcium chloride[J]. Materials Letters, 2018,233:28-30.
[30]	SCHWANDT C, FRAY D J. Determination of the kinetic pathway in the electrochemical reduction of titanium dioxide in molten calcium chloride[J]. Electrochimica Acta, 2005,51(1):66-76. doi: 10.1016/j.electacta.2005.03.048
[31]	MISHRA B, OLSON D L. Molten salt applications in materials processing[J]. Journal of Physics and Chemistry of Solids, 2005,66(2):396-401.
[32]	WANG S L, LI Y J. Reaction mechanism of direct electro-reduction of titanium dioxide in molten calcium chloride[J]. Journal of Electroanalytical Chemistry, 2004,571(1):37-42. doi: 10.1016/j.jelechem.2004.04.010
[33]	PAL U B, WOOLLEY D E, KENNEY G B. Emerging SOM technology for the green synthesis of metals from oxides[J]. Jom, 2001,53(10):32-35. doi: 10.1007/s11837-001-0053-4
[34]	ZHANG N, LI L J, DONG Z H, et al. Preparation of titanium[J]. Hebei Metallurgy, 2020(5):37-40. (张娜, 李兰杰, 董自慧, 等. 金属钛的制备研究[J]. 河北冶金, 2020(5):37-40. ZHANG N, LI L J, DONG Z H, et al. Preparation of titanium[J]. Hebei Metallurgy, 2020（5）: 37-40.
[35]	SUZUKI R O, ISHIKAWA H. Direct reduction of vanadium oxide in molten CaCl₂: Proceedings of the Transactions of the Institutions of Mining and Metallurgy, Section C: Mineral Processing and Extractive Metallurgy, F, 2008[C].
[36]	WANG S L, LI S C, WAN L F, et al. Electro-deoxidation of V₂O₃ in molten CaCl₂-NaCl-CaO[J]. International Journal of Minerals, Metallurgy, and Materials, 2012,19(3):212-216. doi: 10.1007/s12613-012-0540-3
[37]	CAI Z F, ZHANG Z M, GUO Z C, et al. Direct electrochemical reduction of solid vanadium oxide to metal vanadium at low temperature in molten CaCl₂-NaCl[J]. International Journal of Minerals, Metallurgy, and Materials, 2012,19(6):499-505. doi: 10.1007/s12613-012-0586-2
[38]	KONG Y P, CHEN J S, LI B C, et al. Electrochemical reduction of porous vanadium trioxide precursors in molten fluoride salts[J]. Electrochimica Acta, 2018,263:490-498. doi: 10.1016/j.electacta.2018.01.068
[39]	KONG Y P, LI B C, CHEN J S, et al. Electrochemical reduction of vanadium sesquioxide in low-temperature molten fluoride salts[J]. Electrochimica Acta, 2020,342:136081. doi: 10.1016/j.electacta.2020.136081
[40]	ZHU H M, XIAO J S, JIAO S Q, et al. Production cost of titanium metal smelting and possibility of new titanium metallurgy process[J]. Iron Steel Vanadium Titanium, 2021, 42(03): 10-16. (朱鸿民, 肖九三, 焦树强, 等. 钛金属冶炼的生产成本以及新型钛冶金工艺的可能性[J]. 钢铁钒钛, 2021, 42(3): 10-16. ZHU H M, XIAO J S, JIAO S Q, et al. Production cost of titanium metal smelting and possibility of new titanium metallurgy process[J]. Iron Steel Vanadium Titanium, 2021, 42(03): 10-16.
[41]	NING X H, XIAO J S, JIAO S Q, et al. Anodic dissolution of titanium oxycarbide TiC_xO_1-x with different O/C ratio[J]. Journal of The Electrochemical Society, 2019,166(2):E22-E28. doi: 10.1149/2.0141902jes
[42]	AN J L, WANG M Y, JIA Y Z, et al. Facile preparation of metallic vanadium from consumable V₂CO solid solution by molten salt electrolysis[J]. Separation and Purification Technology, 2022, 295.
[43]	ZHU H, WANG H, TAN C P, et al. Research progress on application and preparation of high purity titanium[J]. Materials Review: 1-38. (朱灏, 汪浩, 檀成鹏, 等. 高纯度钛的应用与制备研究进展[J]. 材料导报: 1-38. ZHU H, WANG H, TAN C P, et al. Research progress on application and preparation of high purity titanium[J]. Materials Review: 1-38.
[44]	SEQUEIRA C A C. Chronopoteniometric study of titanium in molten NaCl+KCl+K₂TiF₆[J]. Journal of Electroanalytica Chemistry, 1988,239(1-2):203-208. doi: 10.1016/0022-0728(88)80280-8
[45]	LI Z, GUO R M. Preparation and development direction of high purity titanium[J]. Titanium Industry Progress, 1997(3):8-11. (李哲, 郭让民. 高纯钛的制备及其发展方向[J]. 钛工业进展, 1997(3):8-11. LI Z, GUO R M. Preparation and development direction of high purity titanium[J]. Titanium Industry Progress, 1997（3）: 8-11.
[46]	SONG J X, HUANG X X, WU J Y, et al. Electrochemical behaviors of Ti(III) in molten NaCl-KCl under various contents of fluoride[J]. Electrochimica Acta, 2017,256:252-258. doi: 10.1016/j.electacta.2017.10.058
[47]	LIU S S, LI S L, LIU C H, et al. Effect of fluoride ions on coordination structure of titanium in molten NaCl-KCl[J]. International Journal of Minerals, Metallurgy and Materials, 2023,30(5):868-876. doi: 10.1007/s12613-022-2527-z
[48]	YUAN R, LÜ C, WAN H L, et al. Electrochemical behavior of vanadium ions in molten LiCl-KCl[J]. Journal of Electroanalytical Chemistry, 2021,891:115259. doi: 10.1016/j.jelechem.2021.115259
[49]	KADO Y, KISHIMOTO A, UDA T. New smelting process for titanium: magnesiothermic reduction of TiCl₄ into liquid Bi and subsequent refining by vacuum distillation[J]. Metallurgical and Materials Transactions B, 2014,46(1):57-61.
[50]	RI V E, YOO B U, NERSISYAN H, et al. Carbon-free recovery route for pure Ti: CuTi-alloy electrorefining in a K-free molten salt[J]. ACS Sustainable Chemistry & Engineering, 2023,11(4):1414-1427.
[51]	KUMAR T P, CHANDER S J, NADUVIL H K, et al. Electrorefining of carbonitrothermic vanadium in a fused salt electrolytic bath[J]. Journal of Materials Chemistry, 2001,11(10):2513-2518. doi: 10.1039/b102992b
[52]	LEI K P V, SULLIVAN T A. Electrorefining of vanadium prepared by carbothermic reduction of V₂O₅[J]. Metallurgical and Materials Transactions B, 1971,2(8):2312-2314.
[53]	LEI K P V, SULLIVAN T A. High-purity vanadim[J]. Journal of the Less Common Metals, 1968,14(1):145-147. doi: 10.1016/0022-5088(68)90212-9
[54]	POLOVOV I B, CHERNYSHOV M V, VOLKOVICH V A et al. Vanadium electrorefining in NaCl–KCl–VCl₂ melts[J]. ECS Transactions, 2018,86(14):37. doi: 10.1149/08614.0037ecst
